Compatibility Requirements

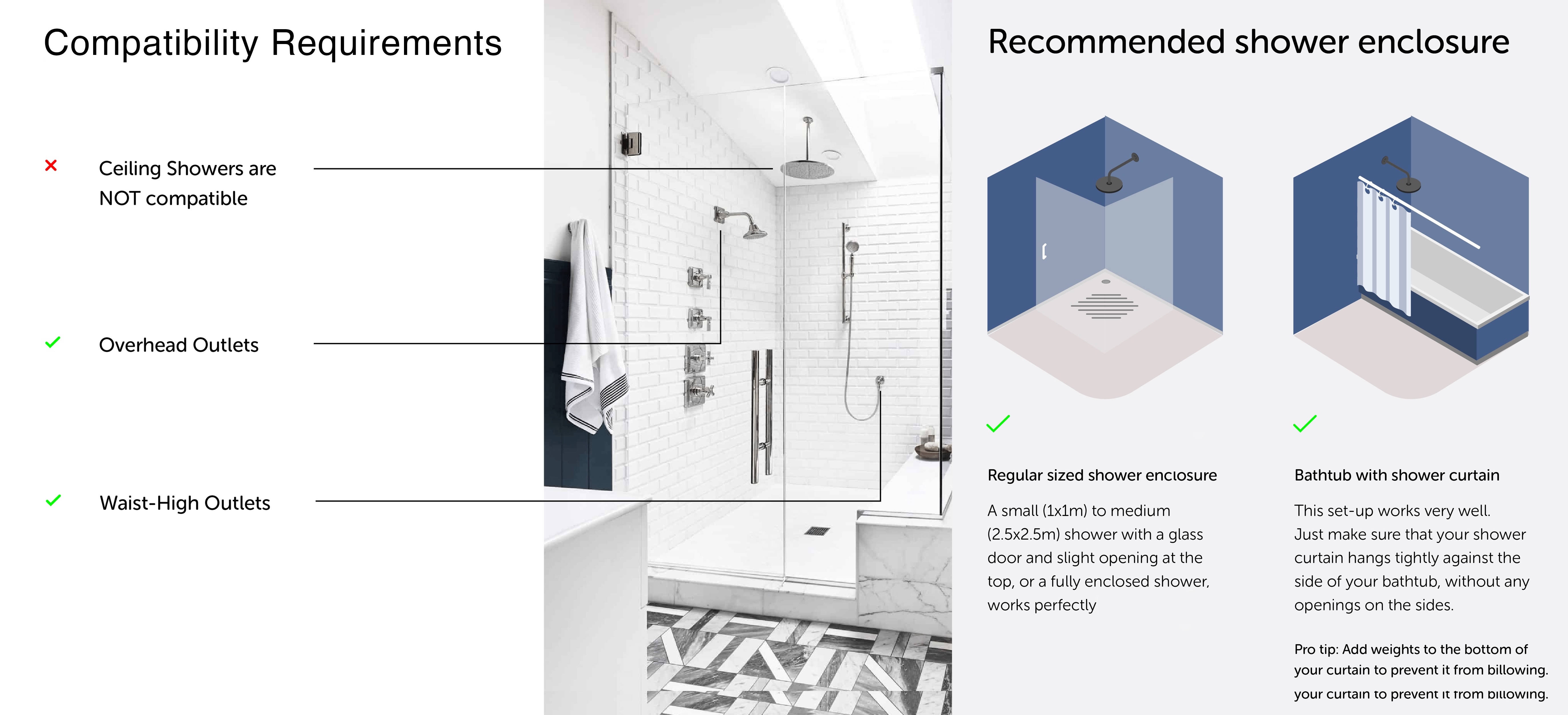

  1. The Nebia Merritt 5-Setting Handshower with HaloNetic Double Docking System requires a compatible water outlet, which must be either an overhead outlet or a waist-high outlet with a 12.7 mm (½ inch) connection (shown in the image below).

  2. Ceiling-mounted showers will not work with this system. Please make sure your setup is compatible before installation.

  3. You will need a Supply Water Pressure of at least 1.4 bar to 5.6 bar max for

Nebia Merritt Compatibility Requirements V2.jpg

CAUTION: Risk of personal injury! If the water temperature is set too high, scalding will occur. The water temperature should never be set above 49°C (120°F). Do not use this Brondell low-flow product with a shower valve that allows the water temperature to become too hot.





Installing the shower

  1. Unscrew the existing showerhead and shower arm by turning it counterclockwise. If necessary, use an adjustable wrench.
  2. Confirm the washer (black donut) is in the cradle’s shower ball.
  3. Thread the cradle’s shower ball connection onto the shower arm and tighten it clockwise by hand.
  4. Confirm the washers (black donuts) are placed in both ends of the hose. Connect the hose to cradle and handshower, then tighten connections by hand.
  5. Attach the magnet to the dock.
  6. Tilt the handle upwards to remove it from the dock.

Note: Be careful not to overtighten or cross-thread to avoid damaging the connections.
